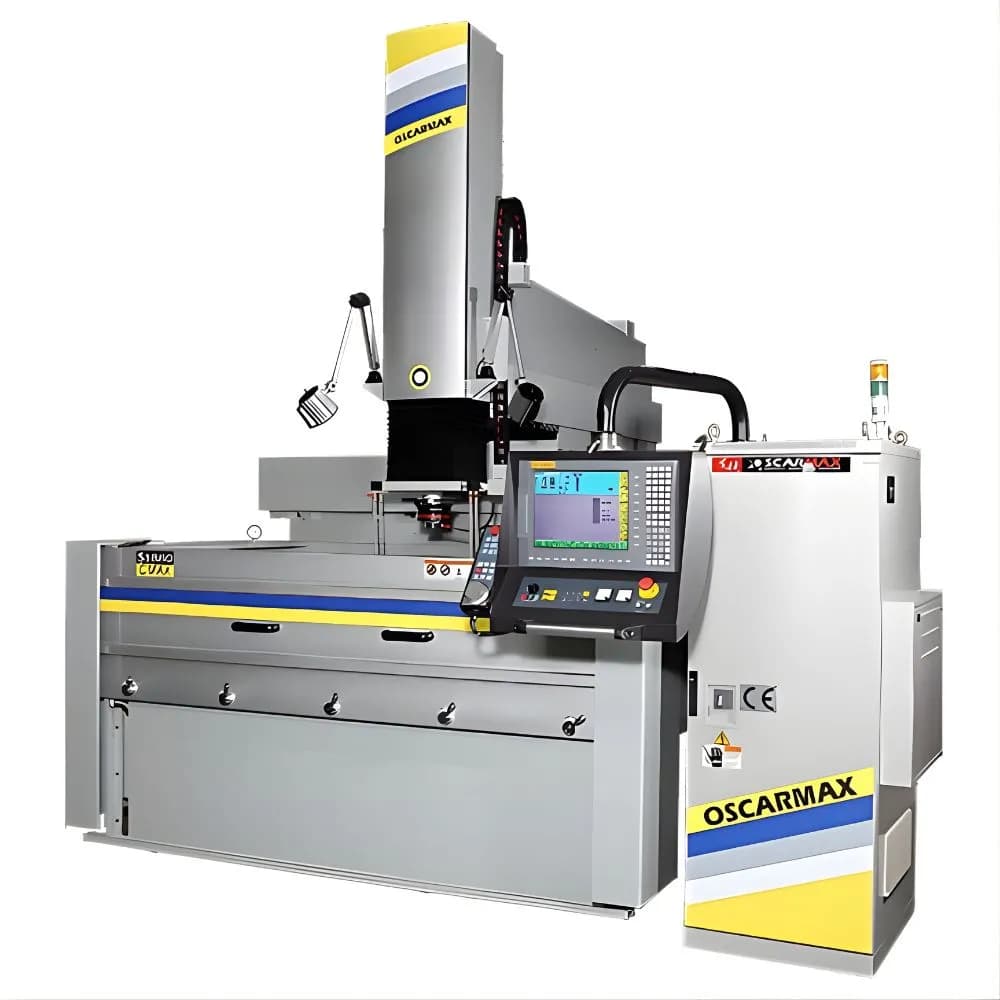

A highly advanced CMAX SERIES CNC EDM featuring 3D mode motion machining and robotic electrode changing. This heavy-duty Sinker Edm Machine supports up to 11,000 kg workpieces, delivering exceptional 6-axis precision and massive ROI for industrial electrical discharge machining.
OSCARMAX

CNC EDM Machine

CMAX EDM Machines7 models

This CNC EDM Machine provides advanced 3D-mode movement machining with 6-Axis control including optional C, A and B electrode head axes, for creating complex precision geometry. It can also be equipped with a robotic arm for automated electrode changing, reducing the need for manual intervention and thereby maximizing production uptime for high-mix / high-volume production.

Get a QuoteSpare Parts

Model Comparison

SpecificationS430S S500 S1060 S1270 S1510 S1880 S2210
Table Travel (X)(mm)400 500 1000 1200 1800 1500 2200
Table Travel (Y )(mm)300 400 600 700 1000 800 1000
Table Travel (Z )(mm)300 450 500 500 600 600 600
Max. Workpiece Weight(kg)550 2300 4500 5000 11000 7000 9500
Max. Electrode Weight(kg)120 200 350 400 500 500 500
Max. Working Current(A)6090 120 120 120 120 120
Table Size (WxD)(mm)650 x 350850 x 4501250 x 7501350 x 8201580 x 1100 1850 x 10003100 x 1100
Machine Weight(kg)1200 30005500 6500 14700 9000 19500
Dielectric Tank Capacity(L)380 850 1610 1875 3410 2715 5580

Features & Accessories

Standard Accessories:

  • 15" LCD Screen
  • Auto Fire Extinguisher
  • Halogen Work Lamp
  • Clamping Plate
  • Leveling Pad
  • Flushing Nozzle
  • Patented Electrode Holder
  • Paper Filter
  • Drill Chuck
  • Tool Box
  • Remote Controller
  • M.P.G.
  • Signal Tower Light



Optional Accessories:

  • 3R / EROWA ATC 16/20T
  • 3R / EROWA ATC 4/6T
  • 3R / EROWA C-axis
  • A/B-axis (Unavailable Submerged)
  • Measuring Probe
  • Dielectric Cooler
  • Permanent Magnetic Table
  • EZ-SPARK for Super Hard Workpiece
  • High Speed Turbo Machining Circuit
