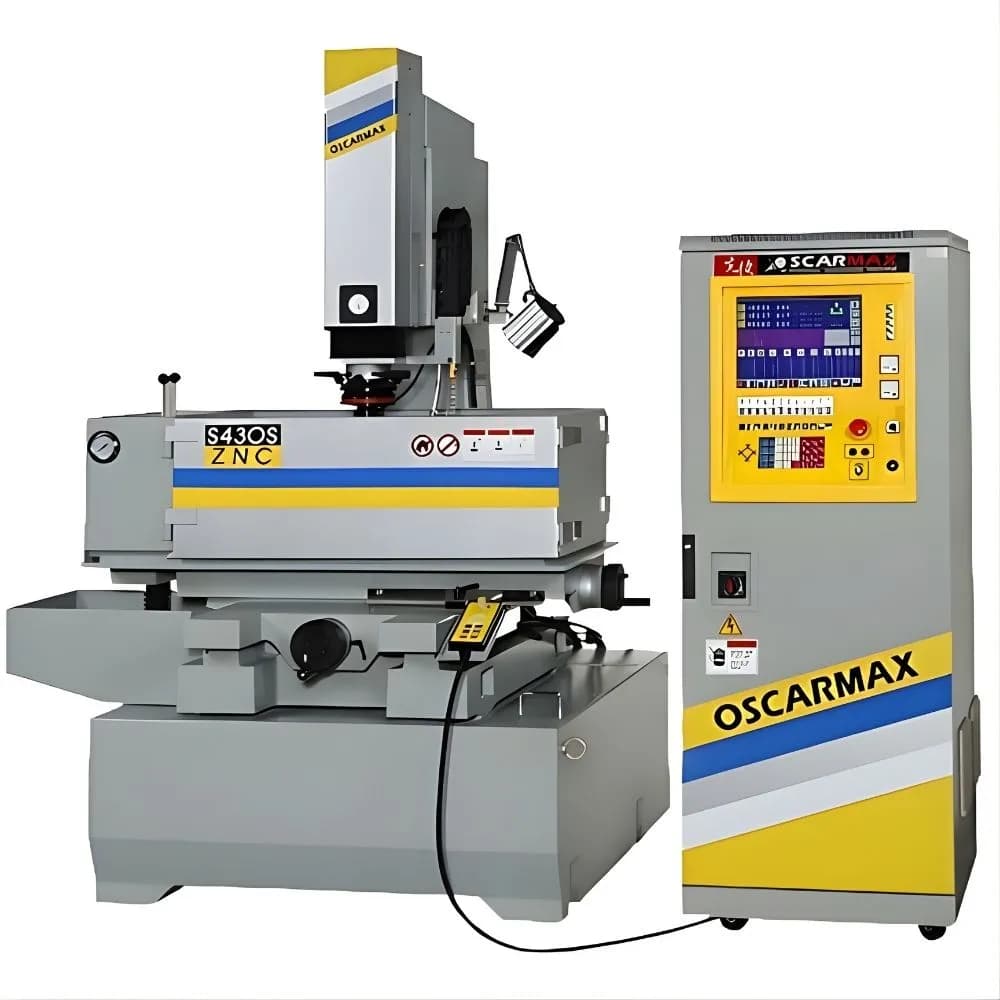

OSCARMAX ZNC EDM Machine
OSCARMAX ZNC EDM Machine comes with an oil tank designed underneath the machine body, allowing it to fit into facilities with limited floor space and working areas. The X and Y axes are operated manually with the hand wheel around the work table. OSCARMAX ZNC EDM Machine is a leading name among Taiwan-imported machining solutions in India.
Model Comparison
| Specification | S430S | S550 | S755 |
|---|---|---|---|
| Table Travel (X)(mm) | 400 | 500 | 700 |
| Table Travel (Y)(mm) | 300 | 400 | 550 |
| Table Travel (Z)(mm) | 180 | 200 | 250 |
| Second spindle travel(mm) | 250 | 300 | 300 |
| Max. workpiece(mm) | 945×510 | 1100x630 | 1630x950 |
| dimensions (W x D)(mm) | 37×20 | 44×25 | 40×28 |
| Max. filling height of dielectric tank(mm) | 215 | 260 | 385 |
| Distance between chuck to table(mm) | 20-450 | 100-600 | 190-740 |
| Max. workpiece weight(kg) | 550 | 1350 | 2000 |
| Max. electrode weight(kg) | 120 | 220 | 250 |
| Table Size (W x D)(mm) | 650x350 | 800x450 | 1100x600 |
| Machine weight(kg) | 1200 | 1950 | 3100 |
| Filter | |||
| Tank capacity(l) | 380 | 520 | 1120 |
| Filter density(µm) | 20 | 20 | 20 |
| Filter elements(Pcs) | 3 | 3 | 4 |
| Generator | |||
| Max. working current(A) | 60 | 60 | 90 |
| Overall power consumption(KVA) | 6 | 6 | 10 |
| Weight(kg) | 320 | 320 | 350 |
Features & Accessories
Standard Accessories:
- 15" LCD Screen
- Auto Fire Extinguisher
- Halogen Work Lamp
- Clamping Plate
- Leveling Pad
- Flushing Nozzle
- Patented Electrode Holder
- Paper Filter
- Drill Chuck
- Tool Box
- Remote Controller
- Signal Tower Light
Optional Accessories:
- Measuring Probe
- Dielectric Cooler
- Permanent Magnetic Table
- EZ-SPARK for Super Hard Workpiece
- High Speed Turbo Machining Circuit
