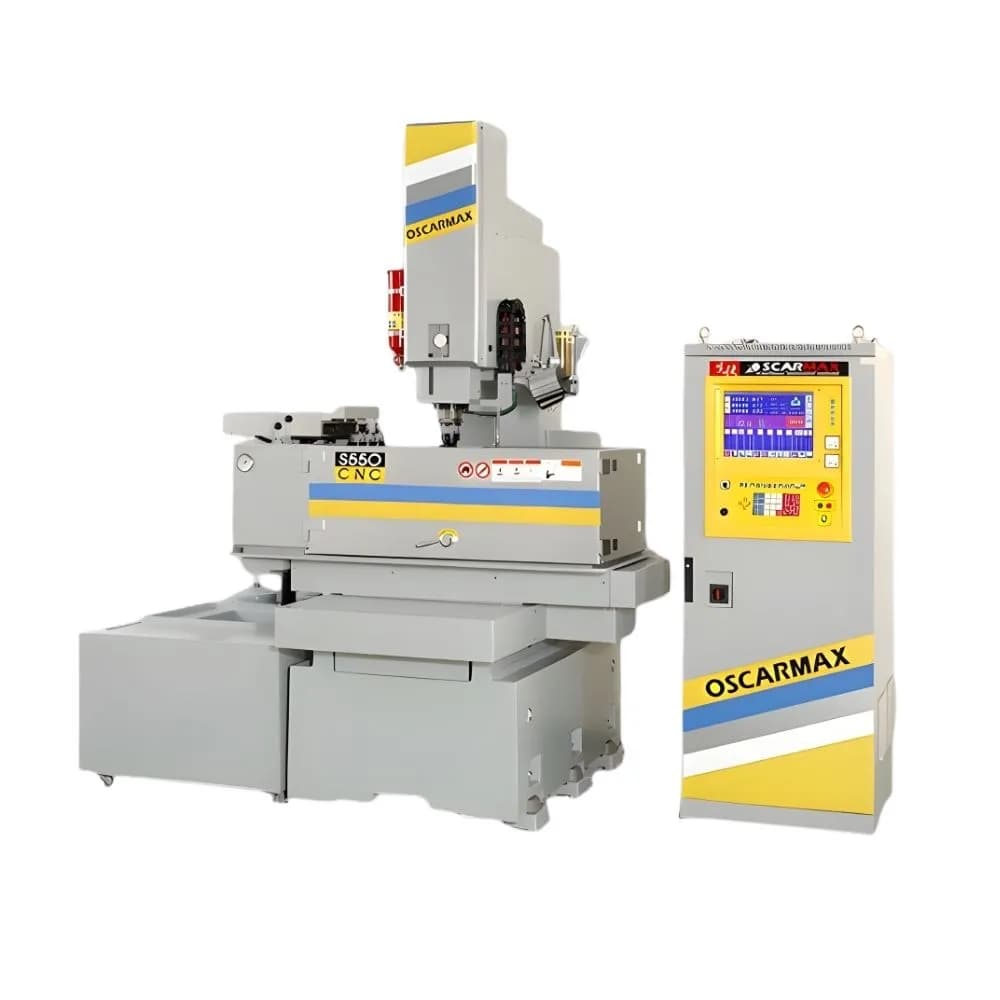

A highly advanced OSCARMAX CNC EDM featuring FUZZY intelligence and precise 2.5D motion machining. This heavy-duty Sinker Edm Machine supports massive 11,000 kg workpieces, delivering exceptional precision and ROI for industrial electrical discharge machining applications.
OSCARMAX

OSCARMAX CNC EDM Machine

CNC EDM7 models

CNC EDM machine, designed for precision and efficiency in 2.5D mode motion machining. This state-of-the-art machine features innovative FUZZY intelligence technology, allowing it to automatically revert to its original machining parameters.

Get a QuoteSpare Parts

Model Comparison

SpecificationS430S S500 S550 S1060 S1270 S1510 S1880
Table Travel (X)(mm)400 500 500 1000 1200 1500 1800
Table Travel (Y )(mm)300 400 400 600 700 1000 800
Table Travel (Z )(mm)300 350 350 500 500 600 600
Max. Workpiece Weight(kg)550 2300 1350 4500 5000 11000 600
Max. Electrode Weight(kg)120 200 220 350 400 500 500
Max. Working Current(A)60 90 60 120 120 120 120
Table Size (WxD)(mm)650 x 350850 x 450800 x 4501250 x 7501350 x 8201580 x 11001850 x 1000
Machine Weight(kg)1200 3000 1950 5500 6500 3410 9000
Dielectric Tank Capacity(L)380 850 520 1610 1875 3410 2715

Features & Accessories

Standard Accessories:

  • 15" LCD Screen
  • Auto Fire Extinguisher
  • Halogen Work Lamp
  • Clamping Plate
  • Leveling Pad
  • Flushing Nozzle
  • Patented Electrode Holder
  • Paper Filter
  • Drill Chuck
  • Tool Box
  • Remote Controller
  • M.P.G.
  • Signal Tower Light

Optional Accessories:

  • 3R / EROWA ATC 4/6T
  • Measuring Probe
  • Dielectric Cooler
  • Permanent Magnetic Table
  • EZ-SPARK for Super Hard Workpiece
  • High Speed Turbo Machining Circuit
