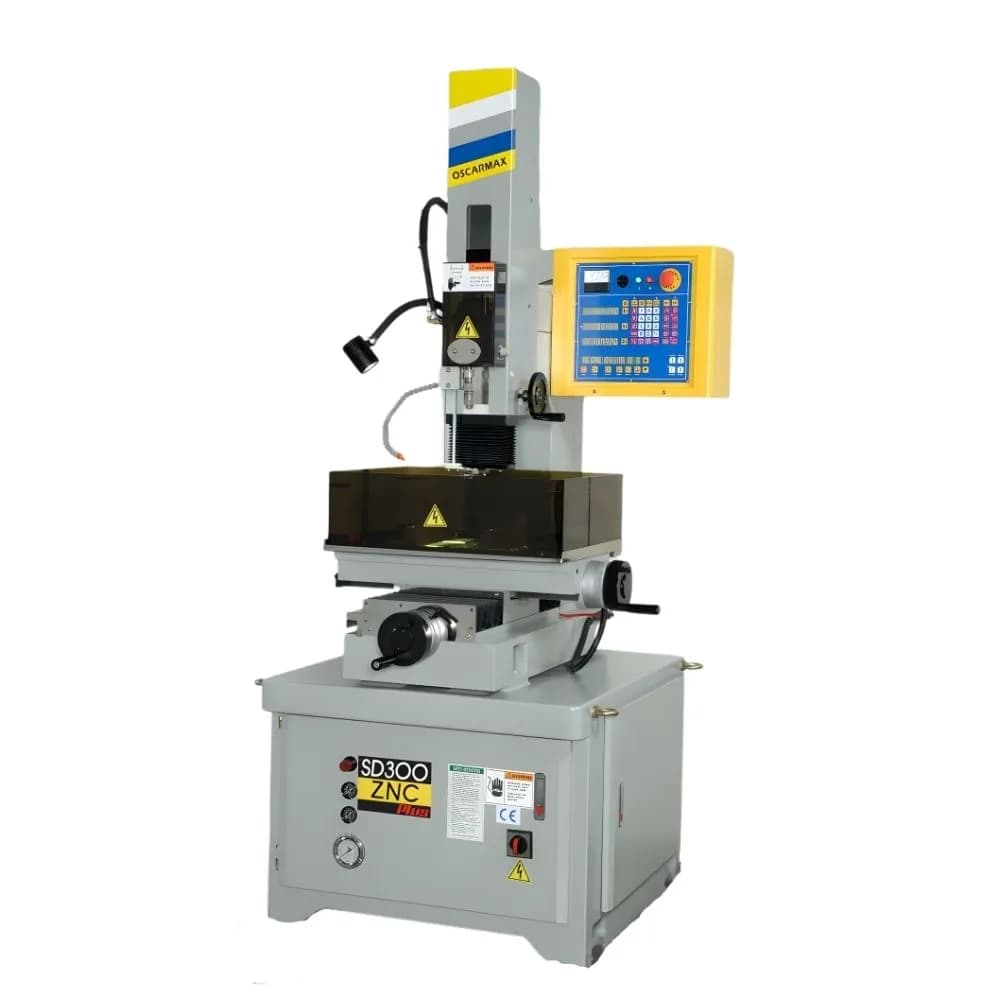

SD ZNC Micro Drill EDM Machine
SD ZNC Micro Drill EDM Machine utilizes FUZZY logic in spark machining. Simply input the material of the electrode and workpiece, along with the maximum and minimum current, and the controller automatically adjusts all machining parameters for both roughing and finishing operations. This innovative feature of the SD ZNC MICRO DRILL EDM machine enhances speed, precision, and surface finish on the workpiece while minimizing electrode wear.
Model Comparison
| Specification | SD300 | SD400 | SD550 | SD755 |
|---|---|---|---|---|
| Table Travel (X)(mm) | 300 | 400 | 550 | 700 |
| Table Travel (Y)(mm) | 250 | 300 | 400 | 550 |
| Table Travel (W)(mm) | 345 | 345 | 345 | 345 |
| Guide Travel (Z)(mm) | NA | 200 | 250 | 300 |
| Manual Guide Travel Z2(mm) | 150 | 150 | 150 | 150 |
| Max. Workpiece Weight (W×D)(mm) | 610x420 | 990x460 | 1075x540 | 1630x690 |
| Guide(30mm) to Work Table(mm) | 100-250 | 5-355 | 45-395 | 145-595 |
| Max. Workpiece Weight(kg) | 120 | 450 | 1000 | 2600 |
| Table Size(mm) | 400x260 | 600x300 | 800x450 | 1100x600 |
| Machine Weight(kg) | 700 | 1200 | 1950 | 2950 |
| Filter | ||||
| Tank Capacity(l) | 60 | 60 | 80 | 80 |
| Filter Density(µm) | 10 | 10 | 10 | 10 |
| Filter Elements | 2 | 2 | 2 | 2 |
| Generator | ||||
| Max. Working Current(A) | 50 | 50 | 50 | 50 |
| Overall Power Consumption(KVA) | 4.6 | 4.6 | 4.6 | 4.6 |
| Weight(kg) | NA | NA | 250 | 250 |
Features & Accessories
Features
- "FUZZY" system & simply input the machining current then all other machining parameters will be set automatically.
- Built-in machining parameters for applications.
- Parameters may be adjusted at any time during machining.
- Newly developed machining circuits special for small hole drilling to ensure quick, stable & fine machining.
- Spindle retract after depth reached.
- 3 Axes D.R.O. included.
- Machining depth & coordinate display on the panel.
Standard Accessories
- Paper
- Toolbox
- Electrode guide Ø1.0mm
- Precision electrode holder Ø0mm-Ø3mm
- Electrode tube Ø1.0mm
- Halogen work lamp
- X, T, Z-axes digital readout & encoder
- Leveling pad
- X, Y, Z-axes ball screw (SD350, 400, 550, 640)
Optional Accessories
- Electrode guide.
- Electrode tube.
- ER type precision collet holder, capacity up to Ø6.35mm.
- 4th axis (Z2 axis) (For CNC series)
- Filter
