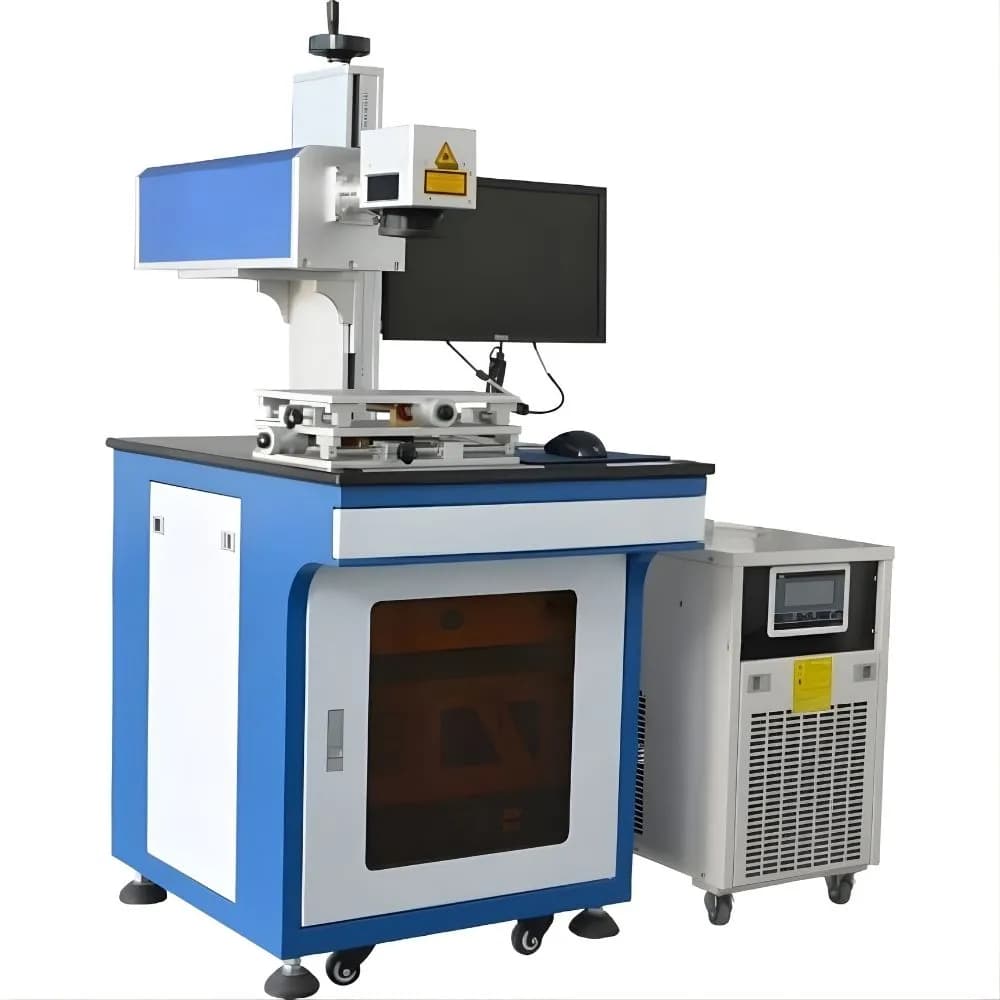

A highly precise 355nm UV Laser Marking Machine built for cold-marking delicate substrates without thermal damage. This versatile glass laser engraving machine and laser engraver for plastic ensures rapid 1000 character/sec speeds and excellent ROI for demanding industrial traceability.
PRECILASER

UV Laser Marking Machine

UV Laser Machine4 models

The ATPL UV Laser Marking Machine employs full crossover cold laser technology that makes it possible to engrave with perfection the plastic materials, the commonly used metals, and other materials used by many manufacturers. This UV laser marking machine is different from regular laser machines in the sense that it can mark non-metallic materials like glass with high precision.

Get a QuoteSpare Parts

Model Comparison

SpecificationPL3W-UV PL5W-UVPL7W-UVPL10W-UV
Beam Quality<1.1<1.1<1.1<1.1
Laser wave length355nm355nm355nm355nm
Laser Power3W5W7W10W
Min. Character0.3mm0.3mm0.3mm0.3mm
Min. Line Width≤ 0.01mm≤ 0.01mm≤ 0.01mm≤ 0.01mm
Marking Speed600-1000 Characters/sec600-1000 Characters/sec600-1000 Characters/sec600-1000 Characters/sec
Marking Range100mm x 100mm / 200mm x 200mm (optional)100mm x 100mm / 200mm x 200mm (optional)100mm x 100mm / 200mm x 200mm (optional)100mm x 100mm / 200mm x 200mm (optional)
Dimensional1020mm x 760mm x 1480mm1020mm x 760mm x 1480mm1020mm x 760mm x 1480mm1020mm x 760mm x 1480mm
Repeatability Accuracy± 0.001mm± 0.001mm± 0.001mm± 0.001mm
CoolingBuilt-in cooling + ChillerBuilt-in cooling + ChillerBuilt-in cooling + ChillerBuilt-in cooling + Chiller
Weight≤ 140kg≤ 140kg≤ 140kg≤ 140kg
Power Supply220VAC ± 10% / 50-60HZ220VAC ± 10% / 50-60HZ220VAC ± 10% / 50-60HZ220VAC ± 10% / 50-60HZ
