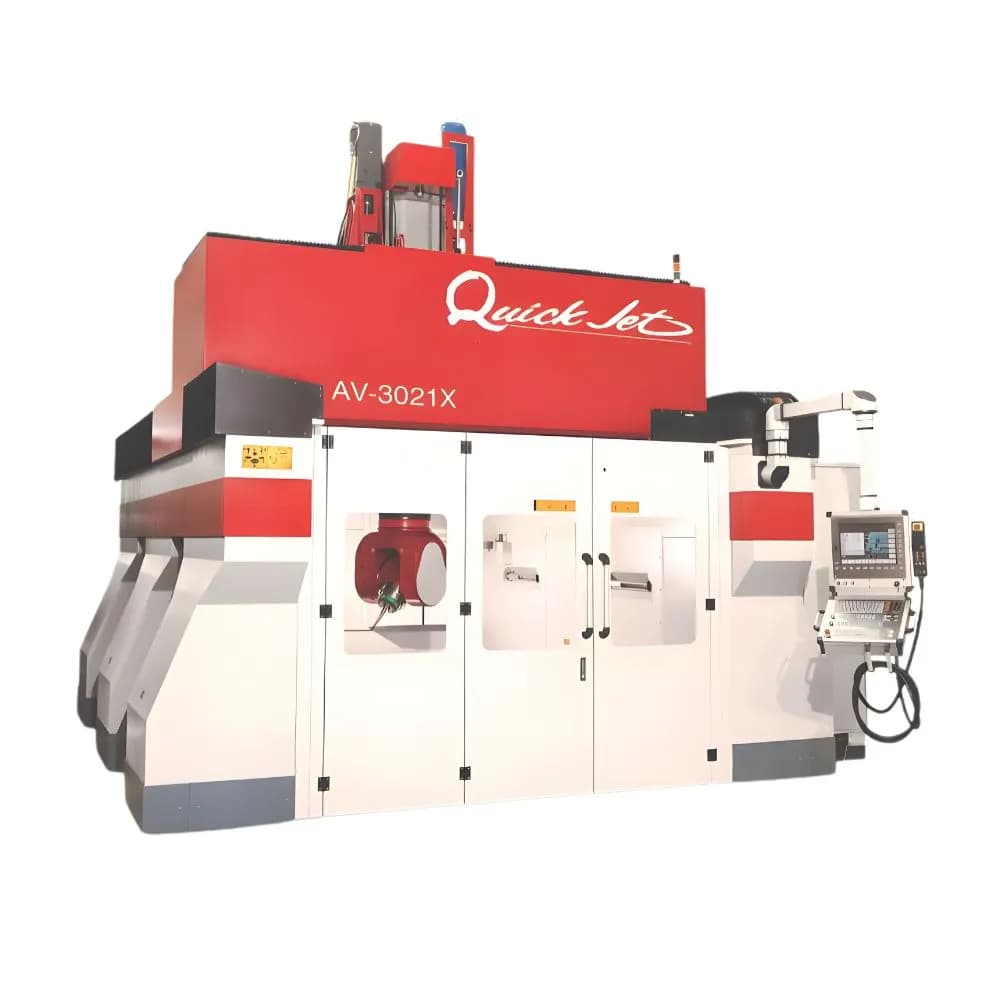

5 Axis CNC Machining Center
The 5 Axis CNC Machining Center by Quick jet is a sturdy, high performance, simultaneous 5 axis CNC milling machine for the tool, die and mould industry. The rigid closed design (box-in-box design) with double-beam, cross-slide construction and integrated, quadruple-guided ram-type milling unit provides outstanding rigidity for demanding, high-precision applications. The machining center is offering precision, durability and productivity to excel at competitive prices to the tool room and die making operations manufacturers in India. Available across four model sizes (AV-120X, AV-1812X, AV-2516X, AV-3021X), the Quick Jet 5 Axis Machining Center scales from compact tool-room use to large, high-tonnage jobs — without compromising on cutting accuracy or surface finish.
Model Comparison
| Specification | AV-120X | AV-1812X | AV-2516X | AV-3021X |
|---|---|---|---|---|
| Travel | ||||
| X axis(mm) | 1200 | 1800 | 2500 | 3000 |
| Y axis(mm) | 850 | 1250 | 1600 | 2100 |
| Z axis(mm) | 500 | 700 | 800 | 1000 |
| Spindle | ||||
| Speed(rpm) | 24000 | 24000 | 26000 | 24000/26000/14000 rpm |
| Taper | HSK-A63 CSC | HSK-A63 CSC | HSK-A63 CSC | HSK-A63 /HSK-A100 CSC |
| Table | ||||
| Size(mm) | Ø630 x 500 | Ø1200 | 2650*1950 | 3500x2500 |
| Table load(kg) | 5-Axis simultaneous machining 300kg, indexing machining 500kg | 4000 | 25000 | Max. 7,000 kg/m2 |
| Distance between spindle & Table (Min- Max)(mm) | 0-672 | - | 200-1000 | 500-1500 mm |
| Precision | ||||
| Positioning accuracy(mm) | 0.004 | 0.004 | 0.004 | 0.004 |
| Repeatability(mm) | 0.002 | 0.002 | 0.002 | 0.002 |
| Machine | ||||
| Machine Size (LxWxH)(mm) | 4660 x 4133 x 3490 | 4,755 x 4,750 x 4,065 | 5,340 x 5,035 x 4,953 | 7,896x6,095x5,057 mm |
| Weight(kg) | 15000 | 20500 | 35000 | 51000 |
Features & Accessories
- Highly accurate cuts through a load- and thermo-symmetrical construction which is resistant to deformation.
- Overhead gantry installation for the sake of providing high precision and proper dynamic movement during the entire travel range.
- Stationary workpiece to ensure surface quality of high standards in each and every operation.
- Increased production rates achieved by implementing the roughing and finishing operations in one single setup — saving cutting time without any losses in terms of accuracy.
- Small footprint, big workspace — an efficient machine that does not sacrifice its capacity due to the compactness of its body.
- Ergonomical floor level access to the machine to make daily operation easier.
- Ratio of expensive investment and low performance of such facilities that need strong construction without any extra overhead costs.
- Equipped with a high-speed 24000+ RPM spindle to deliver exceptional surface finishes and rapid, high-precision cutting.
- Dynamic Collision Monitoring (DCM) system is included into all 5-axis machines.
- Automated axis retraction system for withdrawing the tool axis in emergencies.
