QUICK JET
CNC Double Column Machining Center
Quick jet CNC Machining Centers3 models

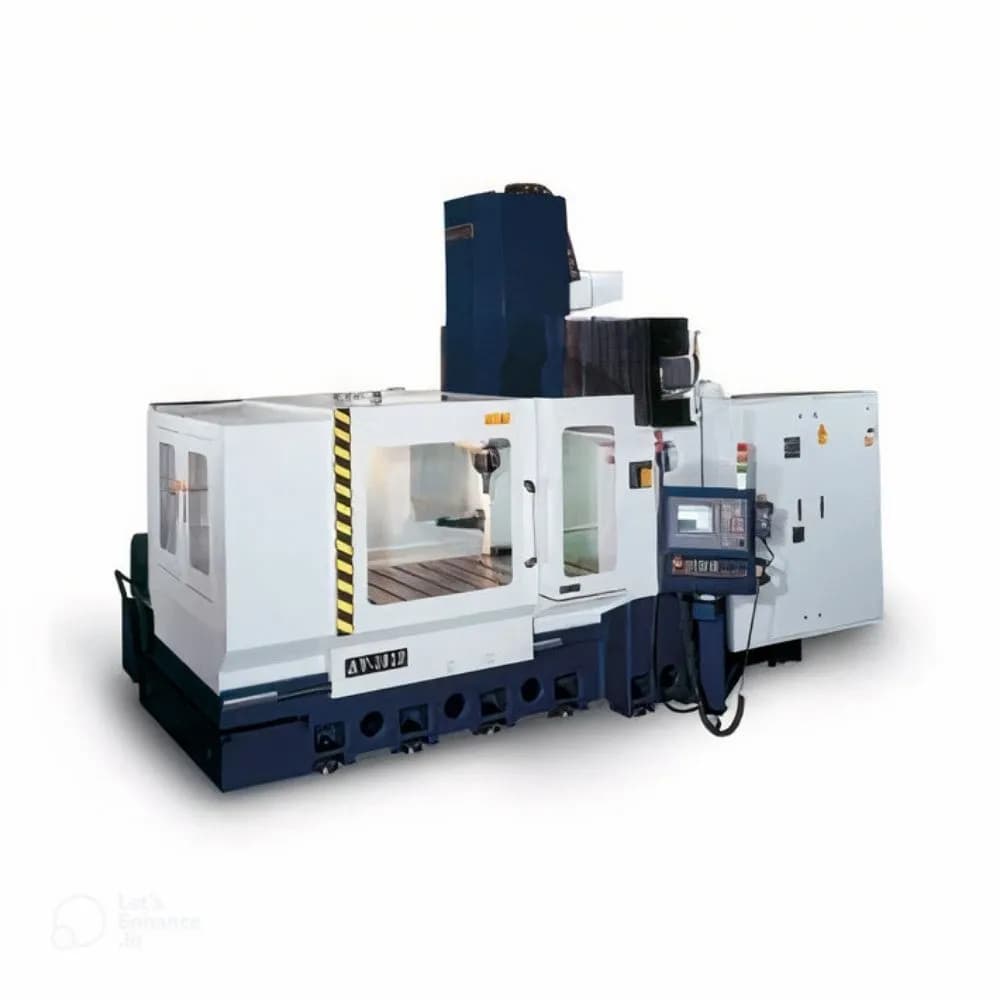

Double Column Machining Centre by Quick Jet with state-of-the-art inbuilt motorized spindle-FISCHER provides great torque for rough machining at low speeds, while it also provides high precision for finishing at higher speeds. The most common applications of such machine tools are in making medium-sized car molds, large toy molds, car electronics lamps parts and large plastic molds.
Model Comparison
| Specification | AV-70S | AV-128 | AV-1612 |
|---|---|---|---|
| Travel | |||
| X axis(mm) | 700 | 1200 | 1600 |
| Y axis(mm) | 400 | 800 | 1200 |
| Z axis(mm) | 350 | 500 | 700 |
| Spindle | |||
| Speed speed(rpm) | 36000 | 24000 | 24000 rpm / 14000 rpm |
| Taper | HSK-E50 | HSK-A63 | HSK-A63 |
| Spindle Power(kg) | 15 | 29 | 29 |
| Table | |||
| Size(mm) | 850x450 mm | 1300x850 | 1800x1300 |
| Table load(kgs) | 800 | 1500 | 4000 |
| Distance between spindle & Table (Min- Max)(mm) | 150-500 | 200-700 | 120-820 mm |
| Precision | |||
| Positioning accuracy(mm) | 0.004 | 0.004 | 0.004 |
| Repeatability(mm) | 0.002 | 0.002 | 0.002 |
| Machine | |||
| Machine Size (LxWxH)(mm) | 2,531 x 1,925 x 2,663 | 2,991 x 2,845 x 3,203 | 4,936 x 3,204 x 3,610 mm |
| Weight(mm) | 5700 | 11000 | 17000 |
Features & Accessories
- FISCHER Integrated Motor Spindle Integrated Motor Spindle for Rough Machining with High Torque at Low Speeds and High Accuracy at High Speeds for Fine Finishing
- High spindle RPM across all models – from 24,000 RPM to 36,000 RPM according to job size and job quality needed.
- High capacity to handle heavy jobs – maximum table load of 4,000 kg on the heaviest model for larger molds and automotive tools.
- Tailored specifically for the manufacture of molds – designed for the making of automobile molds, toy molds, automotive lamp parts, and plastic molds.
- Double Column Structure – Stable and symmetrical design that is capable of maintaining its accuracy even after long periods of usage.
