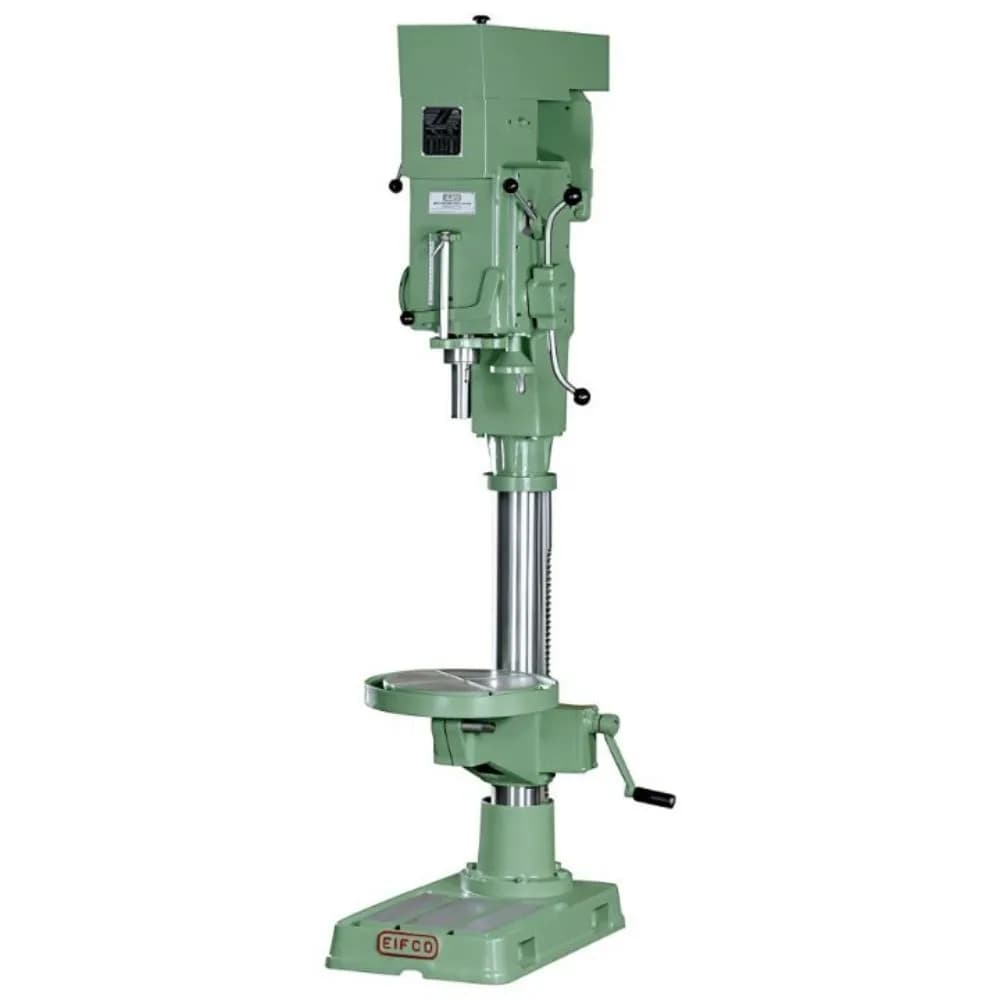

A rugged Eifco Pillar Drilling Machine built for heavy industrial metalworking, featuring robust pillar diameters up to 175 mm and a 50 mm steel drilling capacity. This efficient drill machine pillar type ensures precise tolerances, low maintenance, and excellent ROI for shops needing a dependable Industrial Pillar Drill Machine.
EIFCO

Pillar Drilling Machine

Pillar Drill4 models

As a trusted industry leader, Eifco supplies heavy duty pillar drilling machines designed for uncompromising accuracy. Built for the roughest industrial settings, our machines drill from 13mm to 40mm and are reliable and accurate on any job.

Get a QuoteSpare Parts

Model Comparison

SpecificationP2/25/GTP2/25/GTAP4/38EP 50 AG
Drilling capacity in steel(mm)25253850
Tapping capacityM16M16M22M40 (Inbuilt)
Morse taper in spindle3344
Spindle traverse(mm)140140178200
Pillar diameter(mm)120120139.7175
Distance between centre of spindle and pillar Front(mm)260260311350
Max. distance between spindle and table(mm)610610555630
Max. distance between spindle and base(mm)1080108010001170
Table Working surface(mm)335 dia.335 dia.370 dia.400 x 500
Table vertical traverse (Square)(mm)------630 (Motorized)
Base Working surface(mm)318 x 300318 x 300370 x 330400 x 460
No. of spindle speeds1010512 Speeds
Range of spindle speeds(rpm)100-142-210-310-450 600-852-1260-1860-2700100-142-210-310-450 600-852-1260-1860-2700170-250-360-490-68025-50-75-95-150-190-320 640-900-1115-1805-2235
FeedHandAuto FeedAuto FeedAuto Feed
No. of power feeds--334
Range of power feeds(mm/rev)--0.1 - 0.2 - 0.30.095 - 0.190 - 0.2850.07 - 0.15 - 0.25 - 0.40
Power of the spindle drive motor(kw)0.75kW / 1HP 1400 rpm 415 V AC, 3 Ph 50 Hz1.5kW / 2HP 1400 rpm 415 V AC, 3Ph 50 Hz1.5kW / 2HP 1400 rpm 415 V AC, 3Ph 50 Hz3HP 2 Speed (720/1440)
Space Occupied (L x B x H)(mm)850 x 600 x1975850 x 600 x 20801100 x 640 x 22001220 x 715 x 2120
Net Weight(kg)420 Kg610 Kg850 Kg1200 Kg
