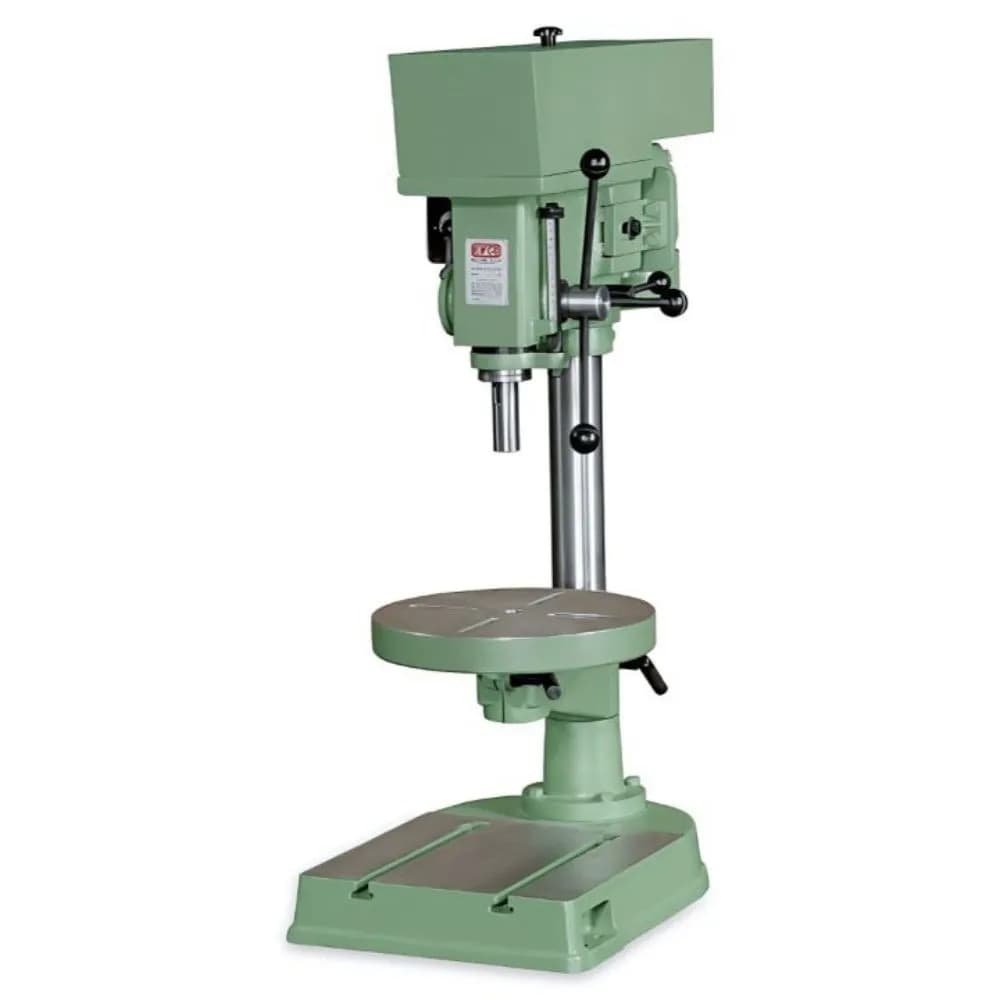

Bench Drilling Machine
Eifco Bench Drilling machine with 13 mm and 20 mm capacities are available with 4 spindle speeds.
Model Comparison
| Specification | Bench BDM/GT | Bench BDM/HD | Bench BDM/MD | Bench BDM/RC |
|---|---|---|---|---|
| Drilling capacity in steel(mm) | 20 | 20 | 13 | 6 or 10 or 13 |
| Tapping capacity in steel(mm) | M 12 | -- | -- | -- |
| Morse taper in spindle(mm) | 2 | 2 | 2 | J2 - J6 (Arbor Type) |
| Spindle traverse(mm) | 125 | 125 | 100 | 76 |
| Vertical adjustment of spindle head(mm) | 425 | 425 | 425 | 200 |
| Pillar diameter(mm) | 76.2 | 76.2 | 57.15 | 100 |
| Distance between centre of spindle and column Front(mm) | 200 | 200 | 149 | 254 |
| Distance between centre of spindle and Base Flange(mm) | -- | -- | -- | 200 |
| Max. distance between spindle and table(mm) | 300 | 300 | 300 | -- |
| Max. distance between spindle and base(mm) | 600 | 600 | 500 | 290 |
| Min. distance between chuck and base(mm) | -- | -- | -- | 90 |
| Table Working surface(mm) | 370 dia. (With coolant gutter) | 370 dia. (With coolant gutter) | 200 x 200 (With coolant gutter) | -- |
| Base Working surface(mm) | 385 x 375 | 385 x 375 | 180 x 210 | 255 x 305 |
| No. of spindle speeds | 10 | 5 | 4 | 6 |
| Range of spindle speeds(rpm) | 100-142-210-310-450-600852-1260-1860-2700 | 375-700-1170-1900-3220 | 480-820-1320-2080 | 1200 to 6790 (or) 825 to 10000 (or)580 to 14000 |
| Feed | Hand | Hand | Hand | Hand |
| Power of the spindle drive motor(kw) | 0.75kW / IHP 1400 rpm415V AC, 3Ph 50 Hz | 0.75kW / IHP 1400 rpm415V AC, 3Ph 50 Hz | 0.37kW / 0.5HP 1425 rpm415V AC, 3Ph 50 Hz | 0.6kW / 0.8HP 2860 rpm415V AC, 3 phase, 50 Hz |
| Space Occupied (L x B x H)(mm) | 790 x 440 x 1370 | 790 x 440 x 1250 | 550 x 340 x 1100 | 1000 x 450 x 850 |
| Net Weight(kg) | 220 Kg | 210 Kg | 105 Kg | 190 Kg |
Video
Related Machines

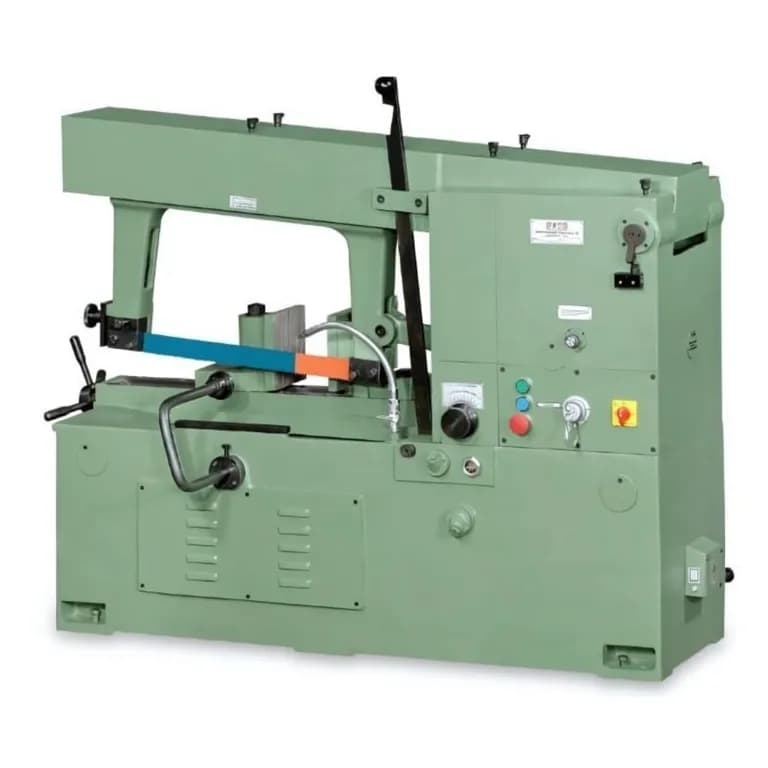

Hydraulic Power Hacksaw Machine
This Hydraulic Power Hacksaw Machine is a heavy duty, high speed metal cutter for continuous industrial use. The hydraulic feed system keeps a constant pressure on the blade, while the double-column design guarantees square cuts on workpieces up to a 300 mm diameter. Variable speed control (40-120 strokes/min) for stainless steel, alloy rounds and structural tube. Integrated coolant filtration helps keep blades lasting longer so production never stops. ATPL is a provider of power hacksaw machines in India, for steel service centers, fabrication units and tool rooms.
Compare Models

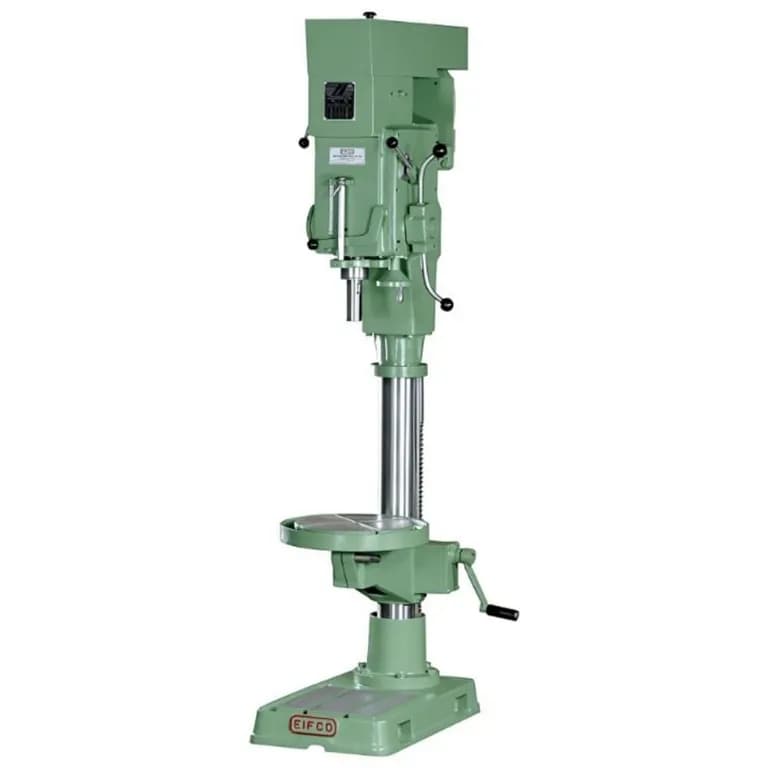

Pillar Drilling Machine
