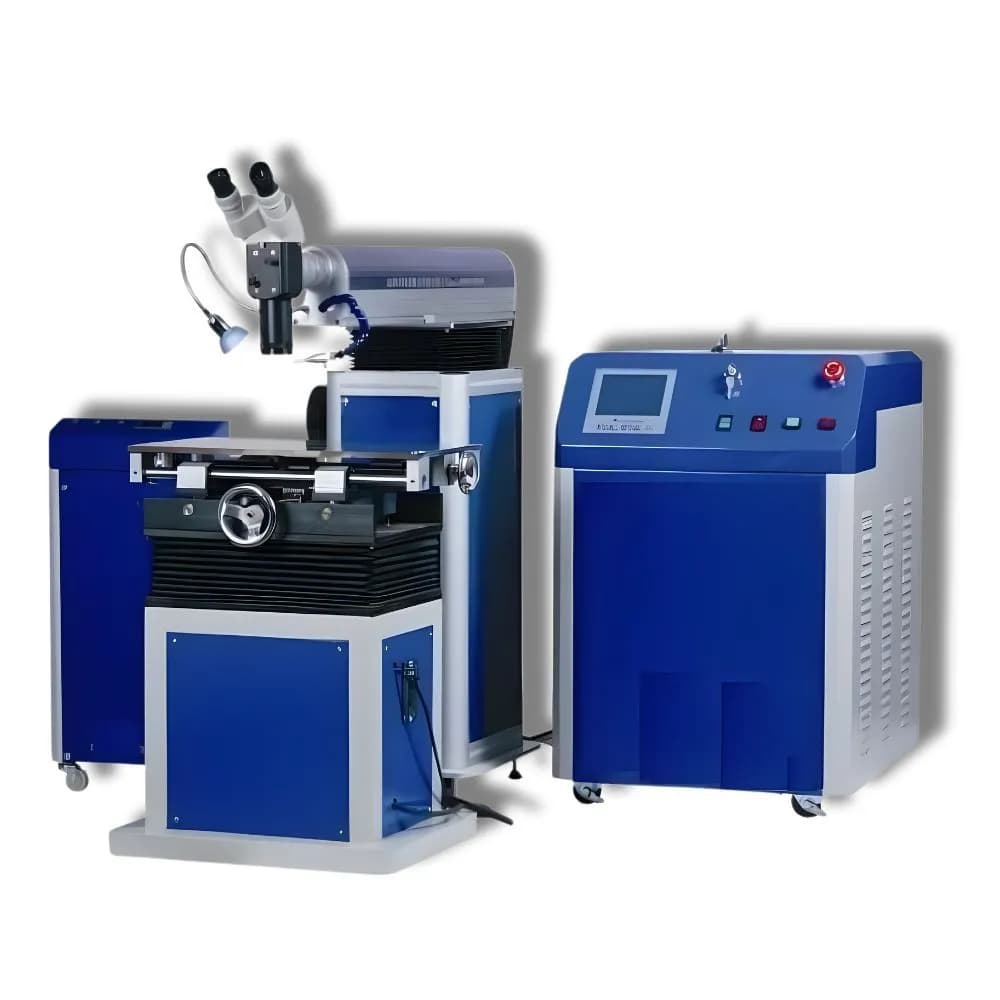

A high-precision Normal Type Mould Laser Welding Machine available in 200W and 400W options. This heavy duty laser welding machine repairs mold cracks and collapsed horns with a 0.2mm spot, ensuring zero thermal distortion and excellent ROI for industrial die makers.
PRECILASER

Normal Type Mould Laser Welding Machine

Mould Laser Welding2 models

Normal Type Mould Laser Welding Machine offers exceptional performance for precise and efficient welding. Available in 200W and 400W power options, these machines are ideal for various applications, including those commonly found in the fiber laser cutting machines industry.

Get a QuoteSpare Parts

Model Comparison

SpecificationPL200WPL400W
Average laser power200W400W
Max laser power240W440W
Max energy of single pulse75J120J
Power Consumption≤ 6 KW12KW
Laser wavelength1064nm1064nm
Pulse width0.5-20ms0.5-20ms
Laser welding frequency0.5 -100HZ0.5 -100HZ
Spot size range0.2-2mm0.2-2mm
Dia. of Welding wire0.1-0.8mm0.1-0.8mm
Dimensional1000mm x 600mm x 1500mm1000mm x 600mm x 1500mm
Weight≤ 300kg≤ 300kg
Power Supply415VAC ± 10% / 50-60HZ415VAC ± 10% / 50-60HZ
Size of the worktable500mm X 300mm X 900mm (L x W x H)500mm X 300mm X 900mm (L x W x H)
Travel of the worktable170mm X 130mm X 200mm (L x W x H)170mm X 130mm X 200mm (L x W x H)
Load-bearing of worktableless than 100KGless than 100KG
Travel of the laser tube200mm X 900mm X 650mm (L x W x H)200mm X 900mm X 650mm (L x W x H)

Features & Accessories

The Normal Type Mould Laser Welding Machine is available in two powers 200W and 400W. These machines can provide customers with laser processing equipment and processing solutions as well for our complete series of laser processing equipment production lines.

Advantages:-

  1. High accuracy , the welding spot diameter is 0.2mm-0.5mm
  2. Little affect area , no distortion of the processing parts.
  3. No effect for etch after welding , low oxidation rate ,the color of the processing parts is intact.
  4. No stomata or sand hole disappeared after welding.
  5. Can process at the welding point , especially applicable to repairing mound requiring polishing.
  6. The processing parts can reach 50-60 rockwell hardness.

Applicable to material & fields:-

Repair cracks , collapsed horn , touched edge and damaged sealing side, welding on horniness material (~HRC60)
