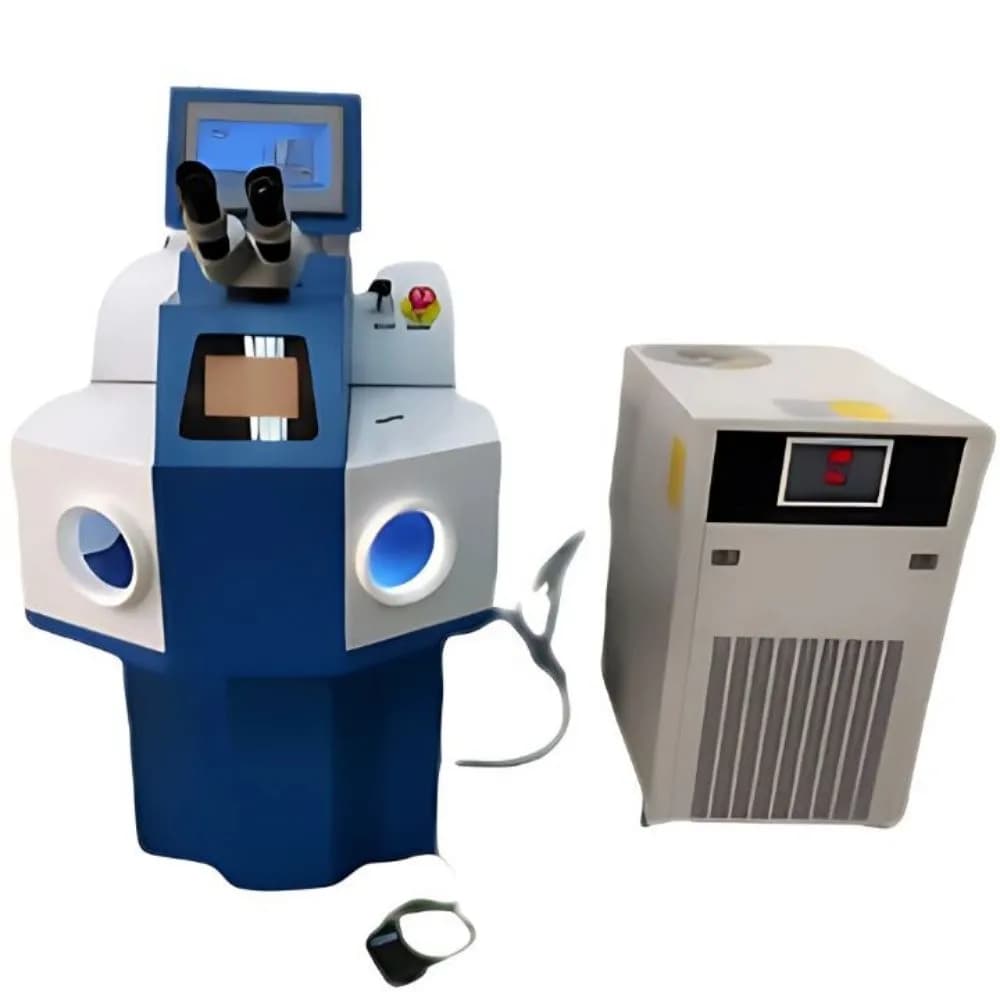

A highly precise Jewelry Laser Welding Machine available in 100W, 200W, and 400W power capacities. This robust Laser Soldering Machine features a U.K. imported ceramic cavity and a 0.2mm spot size, ensuring flawless gold and silver repairs and exceptional ROI for professional jewelers.

PRECILASER

Jewellery Laser Welding Machine

Name: Jewellery Laser Welding Machine
Brand: PRECILASER

Jewelry Welding Machine2 models

The Jewellery laser welding machines are available in 100W, 200W, 400W power. For gold, silver, platinum and other precious metals welding, they provide you with high precision and efficient jewellery fabrication solution, complementing your existing production machines. ATPL can provide you with laser welding equipment as well as complete processing solutions for all our laser processing equipments.

Get a QuoteSpare Parts

Model Comparison

Specification	PL200W	PL400W
Average laser power	200W	400W
Max laser power	200W	400W
Max energy of single pulse	100J	150J
Power Consumption	≤ 6 KW	≤ 12KW
Laser wavelength	1064nm	1064nm
Pulse width	0-20ms	0-20ms
Laser welding frequency	0.5-100HZ	0.5-100HZ
Spot size range	0.2-2mm	0.2-2mm
Welding wire	0.1-0.4mm	0.1-0.4mm
Dimensional	1100mm x 900mm x 1200mm	1100mm x 900mm x 1200mm
Weight	≤ 120kg	≤ 120kg
Power Supply	380VAC ± 10% / 50-60HZ	380VAC ± 10% / 50-60HZ

Features & Accessories

Advantages:

Energy, pulse width, frequency and facula can be adjusted within a wide range to achieve different welding effects. Parameters are adjusted by the control rod in the sealed cavity, simple and efficient.
Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in electrical / optical conversion.
The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is over 8 million times.
World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
24-hour continuous operation, with stable operating performance, and free from maintenance within 10000 hours.
Personalized design in compliance with ergonomics principles.

Applicable to material & fields

perforation and spot welding of sand hole for gold and silver jewelries, gold and silver jewelries processing, and welding of small-sized parts.

Technical specifications:

Average laser power: 200W / 400W
Max laser power: 200W / 400W
Max energy of single pulse: 100J / 120J
Laser wavelength: 1064nm
Pulse width: 0-20ms
Laser welding frequency: 0.5 -100HZ
Spot size range: 0.2-2mm
Welding wire: 0.1-0.4mm
Power Supply: 380VAC ± 10% / 50-60HZ
Power Consumption: ≤6KW / 12KW
Water pressure protection: ≤ 0.025MPa
Cooling water temperature: ≤ 35 degrees
Temperature protection: 45 degrees
Cooling water flow: 10L/min
Dimensional: 1100mm x 900mm x 1200mm
Weight: ≤120kg
Cooling Way: Water cooling
Laser Type: Pulse
