PRODUCER Hot Chamber Zinc Die Casting Machine (30–130 Ton)
Hot Chamber Machines5 models

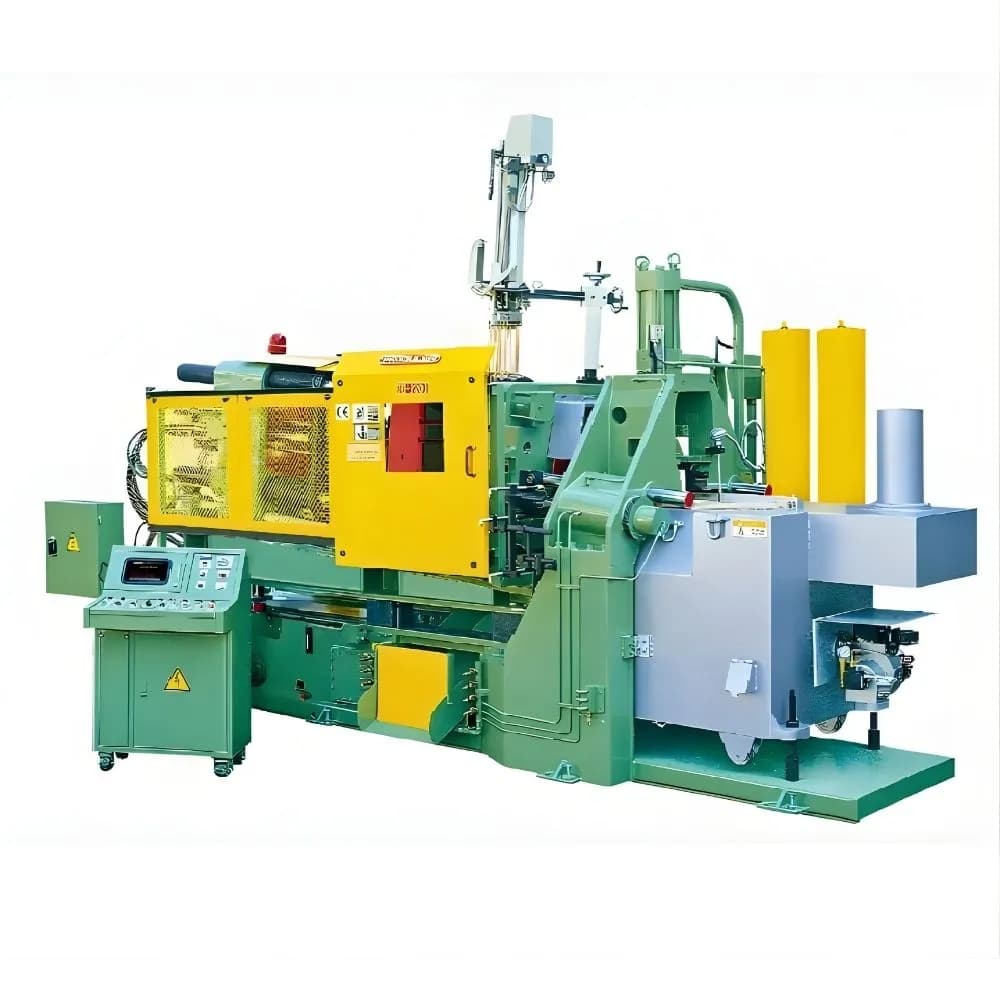

PRODUCER Hot Chamber Zinc Die Casting Machine (30 – 130 Tonne) has the advanced hot chamber zinc die casting technology and the years of experience in engineering which guarantee the precision zinc casting machines that will manufacture small and medium sized parts. The zinc die casting machine is offered in 5 different versions P30, P50, P75, P90 and P130. With our machine the die caster will have a complete turnkey production cell that will allow to produce parts automatically without any manual operations. the whole machine system will be supported by ATPL with the turnkey engineering services and therefore you will receive reliable zinc castings without any unexpected downtimes.
Model Comparison
| Specification | P30 | P50 | P75 | P90 | P130 |
|---|---|---|---|---|---|
| Clamping force(ton) | 30 | 50 | 75 | 90 | 130 |
| Tie bar diameter(mm) | 50×6 | 55×4, 50×2 | 60×6 | 65×4, 60×2 | 80×6 |
| Die platen size (H×V)(mm) | 460 × 480 | 490 × 510 | 520 × 550 | 570 × 550 | 680 × 634 |
| Between tie bars (H×V)(mm) | 280 × 280 | 305 x 305 | 340 x 340 | 351x351 | 400 × 400 |
| Max. Die stroke(mm) | 193 | 193 | 215 | 270 | 293 |
| Die height(mm) | 100~350 | 100~400 | 80-460 | 80-440 | 90-495 |
| Nozzle touch force(ton) | 3 | 3 | 4.6 | 4.6 | 5.4 |
| Nozzle break stroke(mm) | 150 | 150 | 160 | 160 | 180 |
| Dia. Injection cylinder(mm) | Ø70 | Ø80 | Ø90 | Ø95 | Ø100 |
| Max. Injection force(ton) | 2.3 | 3 | 4.5 | 5 | 5.5 |
| Max. Injection stroke(mm) | 120 | 120 | 125 | 125 | 190 |
| Standard plunger tip dia.(mm) | 38/45 | 45 | 50 | 55 | 60 |
| Total net injection amount (Zn)(gr) | 600/950 | 950 | 1160 | 1390 | 2700 |
| Melting pot capacity (Zn)(kg) | 200 | 200 | 260 | 360 | 500 |
| Nozzle position (Center lower part)(mm) | 0,-50 | 0,-50 | 0,-60 | 0,-60 | 0,-80 |
| Max. Casting area(cm²) | 118/166 | 212 | 262 | 341 | 533 |
| Casting pressure(kg/cm²) | 203/145 | 189 | 229 | 211 | 195 |
| Intensifier pressure(kg/cm²) | — | — | — | — | 100 |
| Ejection force(ton) | 2.5 | 2.5 | 3.8 | 3.8 | 6 |
| Ejection stroke(mm) | 60 | 60 | 70 | 70 | 90 |
| Casting cycles (Free)(n/h) | 1200 | 1200 | 1000 | 900 | 800 |
| Working pressure(kg/cm²) | 70 | 100 | 110 | 105 | 120 |
| Accumulator (Bladder type)(l/pcs) | 10×2 | 10×2 | 10×1,20×1 | 20×1,*30×1 | 20×1,*20×2 |
| Oil tank capacity(L) | 150 | 150 | 200 | 200 | 350 |
| 3 Phase induction motor(kw) | 3.7 | 5.5 | 7.5 | 11 | 11 |
| 220/110VAC transformer(amp) | 5 | 5 | 5 | 5 | 5 |
| Machine weight(ton) | 3.7 | 4 | 4.8 | 5.2 | 8.7 |
| Overall dimensions (L×W×H)(m) | 3×1.6×2 | 3×1.6×2 | 3.4×2×2.05 | 3.6×2×2.05 | 4.8×2.1×2.3 |
