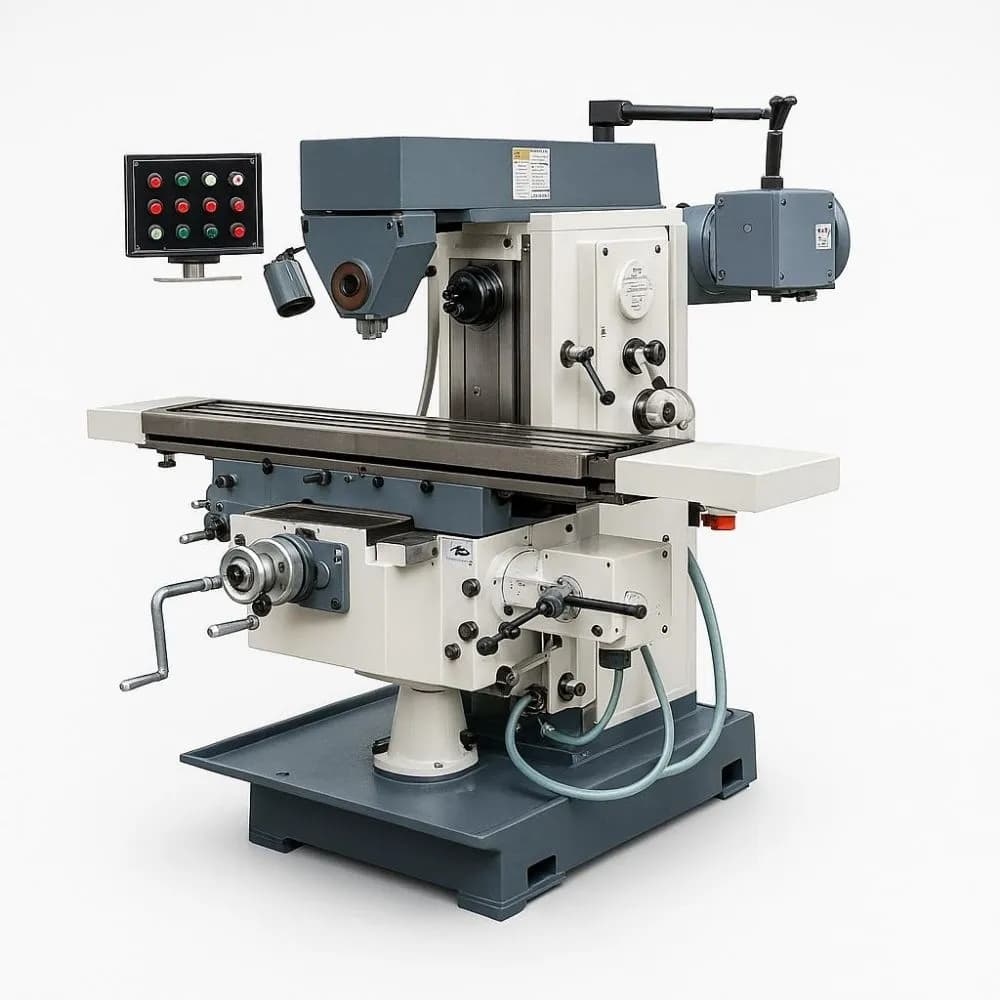

PRECICUT Horizontal Milling Machine
Horizontal Milling Machine1 model
The ATPL PRECICUT Horizontal Milling Machine from Taiwan is a workhorse built for high-volume industrial machining. It has a rotating cutting tool that is parallel to the ground, unlike vertical mills, so the metal chips fall away by gravity. This makes for cleaner faster cuts on larger and heavier workpieces. This machine incorporates many features of other universal milling machines such as multi-axis table movement, adjustable speed control, digital readout (DRO), automated feed mechanisms and precision measurement systems making it a versatile addition to any tool room or production floor.
Model Comparison
| Specification | HM-2 |
|---|---|
| Table | |
| Table size(mm) | 1320x320 |
| T slot(no.) | 5 |
| Size ( Width )(mm) | 14 |
| Centre distance(mm) | 63 |
| Max. load of Table(kg) | 300 |
| Machining Range | |
| Table Longitudinal Travel(Manual/Auto)(mm) | 1000 |
| Table Cross Travel (Manual/Auto)(mm) | 300 |
| Table Vertical Travel(Manual/Auto)(mm) | 400 |
| Main Spindle | |
| Spindle Taper | 7:24 ISO50 |
| Spindle Speed /Step(rpm) | 58-1800/12 |
| Vertical Spindle Axis To Column Surface(mm) | 320 |
| Vertical Spindle Nose To Table Surface(mm) | 0-341 |
| Horizontal Spindle Axis To Table Surface(mm) | 0-400 |
| Horizontal Spindle Axis To Arm Bottom(mm) | 175 |
| Arm Travel(mm) | 500 |
| Feeds | |
| Longitudinal/Cross Feed(mm / min) | 20-360/8 |
| Vertical/Step(mm/min) | 400/1 |
| Longitudinal/Cross Rapid Speed(mm / min) | 1200 |
| Rapid Traverse Vertical(mm/min) | 400/1 |
| Power | |
| Main Motor(kw) | 4 |
| (X/Y/Z) Feed Motor(kw) | 0.55 |
| (Z) Feed Motor(kw) | 0.75 |
| Coolant Motor(kw) | 0.09 |
| Other | |
| Package Dimension(cm) | 193x207x225 |
| Overall Dimension(cm) | 207*202*185 |
| N/W,G/W(kg) | 2200/2400 |
Features & Accessories
Why is it special?
- Can cut bigger and heavier pieces than other machines
- Metal chips (the bits that get cut off) fall away easily because of gravity
- Can use many cutters at once to make different cuts
- Works great for big, heavy jobs
Common uses:
- Making flat surfaces on metal
- Cutting slots in metal pieces
- Making gears
- Cutting grooves for keys (the parts that help connect machine pieces)
