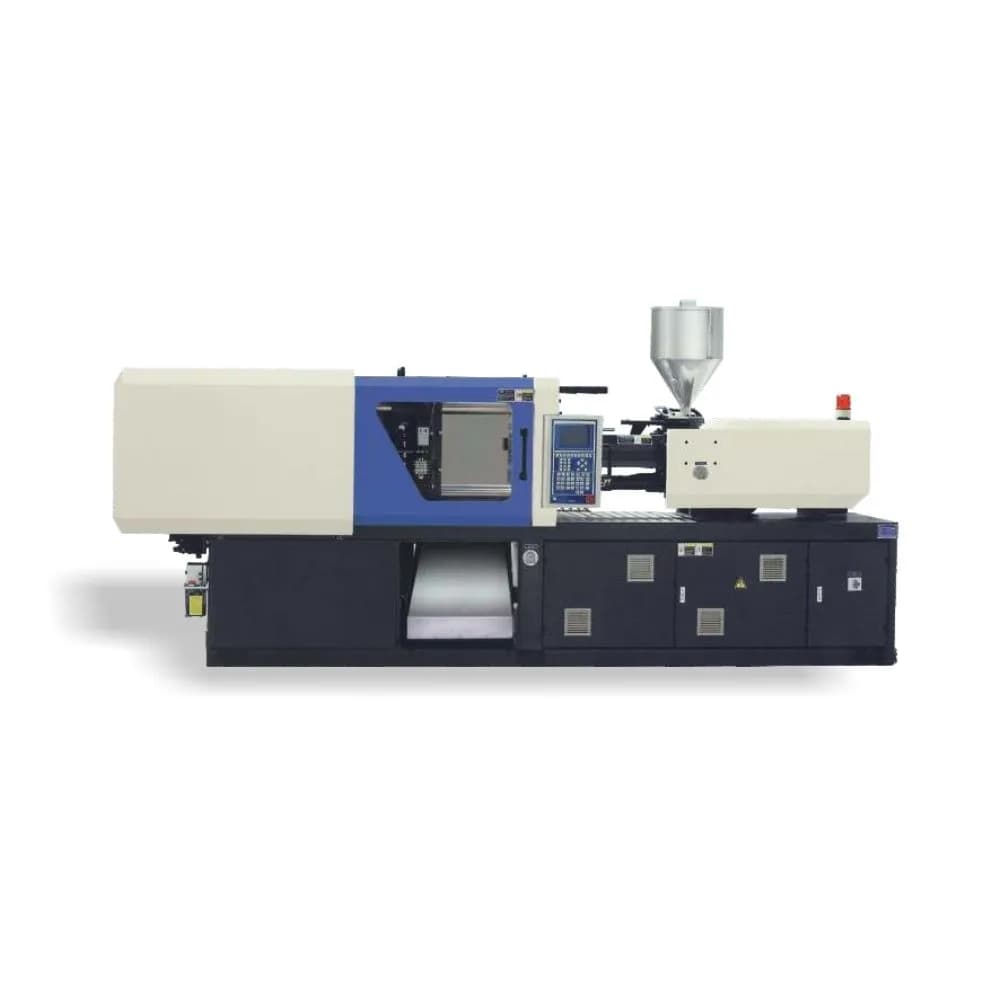

A highly efficient Taiwan-imported plastic injection molding machine featuring energy-saving servo pumps and up to 25000 KN of clamping force. This premium Injection Molding Machines setup ensures exact shot repeatability and exceptional ROI for high-volume plastic production facilities.

PRECIMOULD

Precimould Injection Moulding Machine

Name: Precimould Injection Moulding Machine
Brand: PRECIMOULD

Horizontal Injection Moulding16 models

Horizontal Injection Moulding Machine, also known as an injection press, is used for high-volume production of plastic parts through the injection moulding process. it consists of two units namely injection unit and clamping unit, which are well designed to give quality production.

Get a QuoteSpare Parts

Model Comparison

Specification	PM-50S	PM-100S	PM-140S	PM-180S	PM-240S	PM-800S	PM-900S	PM-1100S	PM-1260S	PM-280S	PM-330S	PM-370S	PM-410S	PM-470S	PM-540S	PM-660S
Screw Diameter(mm)	26 \| 30	32 \| 36 \| 40	36 \| 40 \| 45	40 \| 45 \| 50	45 \| 50 \| 55	85 \| 90 \| 100 \| 110	85 \| 90 \| 100 \| 110	100 \| 110 \| 120 \| 130	100 \| 110 \| 120 \| 130	50 \| 55 \| 60	55 \| 60 \| 65	60 \| 65 \| 70	65 \| 70 \| 75	70 \| 75 \| 80	75 \| 80 \| 85	80 \| 85 \| 90 \| 100
Screw L:D ratio(L/D)	20.9 \| 18.1	23.6 \| 21 \| 18.9	23.9 \| 21.5 \| 19.1	23.6 \| 21 \| 18.9	23.9 \| 21.5 \| 19.5	23.8 \| 22.5 \| 20.3 \| 18.4	23.8 \| 22.5 \| 20.3 \| 18.4	24.2 \| 22 \| 20.2 \| 18.6	24.2 \| 22 \| 20.2 \| 18.6	23.7 \| 21.5 \| 19.7	22.9 \| 21 \| 19.4	23.8 \| 22 \| 20.4	22.0 \| 20.4 \| 19.1	24.1 \| 22.5 \| 21.1	22.5 \| 21.1 \| 19.9	23.9 \| 22.5 \| 21.3 \| 19.5
Theoretical Capacity(cm3)	55 \| 75	145 \| 183 \| 189	204 \| 251 \| 318	283 \| 358 \| 442	437 \| 540 \| 653	2837 \| 3181 \| 3927 \| 4752	2837 \| 3181 \| 3927 \| 4752	5105 \| 6177 \| 7351 \| 8628	5105 \| 6177 \| 7351 \| 8628	609 \| 737 \| 877	784 \| 933 \| 1095	1060 \| 1244 \| 1443	1244 \| 1443 \| 1657	1636 \| 1878 \| 2136	1878 2136 2412	2262 \| 2554 \| 2863 \| 3394
Theoretical shot weight(g)	50 \| 68	133 \| 169 \| 208	187 \| 231 \| 293	260 \| 329 \| 406	402 \| 497 \| 601	2610 \| 2926 \| 3613 \| 4372	2610 \| 2926 \| 3613 \| 4372	4697 \| 5683 \| 6763 \| 7937	4697 \| 5683 \| 6763 \| 7937	560 \| 678 \| 806	721 \| 858 \| 1007	975 \| 1145 \| 1328	1145 \| 1328 \| 1524	1505 \| 1727 \| 1965	1827 \| 1965 \| 2219	2081 \| 2349 \| 2634 \| 3123
Injection Rate(g/s)	65 \| 86	81 \| 103 \| 127	117 \| 145 \| 183	144 \| 182 \| 224	182 \| 225 \| 272	587 \| 659 \| 813 \| 984	587 \| 659 \| 813 \| 984	719 \| 870 \| 1035 \| 1215	799 \| 966 \| 1150 \| 1350	212 \| 256 \| 305	266 \| 317 \| 372	288 \| 338 \| 392	338 \| 392 \| 450	421 \| 483 \| 550	483 \| 550 \| 621	547 \| 617 \| 692 \| 820
Injection Pressure(g/Sec.)	2130 \| 1600	2285 \| 1806 \| 1463	2215 \| 1794 \| 1418	2267 \| 1791 \| 1451	2240 \| 1814 \| 1500	2119 \| 1890 \| 1531 \| 1265	2119 \| 1890 \| 1531 \| 1265	2093 \| 1729 \| 1453 \| 1238	2093 \| 1729 \| 1453 \| 1238	2189 \| 1809 \| 1520	2174 \| 1827 \| 1557	2300 \| 1960 \| 1690	1960 \| 1690 \| 1472	1967 \| 1714 \| 1506	1714 \| 1506 \| 1334	2121 \| 1878 \| 1676 \| 1413
Plastcising Capacity(bar)	6 \| 9	10 \| 14 \| 19	14 \| 19 \| 26	21 \| 29 \| 38	24 \| 32 \| 42	90 \| 105 \| 140 \| 182	90 \| 105 \| 140 \| 182	117 \| 152 \| 193 \| 241	130 \| 169 \| 215 \| 267	31 \| 41 \| 51	34 \| 50 \| 62	51 \| 64 \| 78	53 \| 65 \| 79	61 \| 74 \| 88	74 \| 88 \| 104	79 \| 93 \| 109 \| 138
Max. Screw speed(r/min)	225	242	242	266	222	145	154	122	135	216	210	216	180	169	169	151
Nozzle stroke(mm)	160	200	230	250	315	600	600	750	750	355	355	400	400	430	440	490
CLAMPING UNIT
Clamping force(KN)	500	980	1380	1780	2380	8000	9000	11000	12600	2680	3280	3680	4080	4680	5380	6580
Toggle stroke(mm)	250	320	360	430	490	1040	1120	1220	1250	550	600	660	700	780	830	920
Space between tie bar(mm)	265x265	365x365	415X415	470X470	530X530	1000X1000	1080X1080	1160X1160	1250X1250	580X580	630X630	680X680	730X730	780X780	820X820	900X900
Min. /Max. Mould Height(mm)	100-300	150-380	150-450	180-520	200-550	400-1000	480-1100	500-1200	550-1250	220-580	230-630	250-680	280-730	300-780	330-810	380-930
Ejector stroke(mm)	65	100	130	140	140	280	300	350	350	165	165	170	200	200	200	230
Ejector force(KN)	20	38	38	45	45	212	212	227	227	62	62	80	102	125	125	152
POWER/HEATING
Pump motor (Kw)	7.5	11.0	15.0	18.5	22.0	55+30	55+30	55+45	55+45	30.0	37.0	45.0	45.0	55.0	55.0	55+11
Heating power(Kw)	2.5	6.2	9.8	9.8	14.3	49.3	49.3	71.6	71.6	16.7	17.9	20.8	22.9	25.4	28.2	42.5
GENERAL
Machine dimension (LxWxH)(mtr)	3.1X0.87X1.35	4.3X1.17X1.86	4.8X1.2X1.96	5.15X1.27X1.96	5.6X1.48X2.04	10.2X2.7X2.9	10.9X2.75X2.9	11.3X3.1X3.9	12.5X2.7X3.3	6.3X1.55X2.09	6.5X1.86X2.09	6.9X1.91X2.08	7.3X1.85X2.3	8.2X2.13X2.3	8.6X2.2X2.3	9.8X2.35X2.3
Machine weight(ton)	2	3.5	4.6	5.6	7.5	38	45	51	60	8.8	11	13	15	19	22	30

Features & Accessories

The key issue in injection moulding machine is the consistent shot speed, pressure, accurate and repeated clamping along with energy saving. Variable pumps and servo-driven gear pumps are used in the machines to deliver significant energy savings. Accordingly, injection moulding machines are available in various categories.

The key features:

Shot Weight gms: 50 ~ 32986
Clamping Force Kn: 500 ~ 25000
Space Between Tiebar mm x mm: 265x265 ~ 1850x1700

It is also a "Plastic Chair Making Machine"
