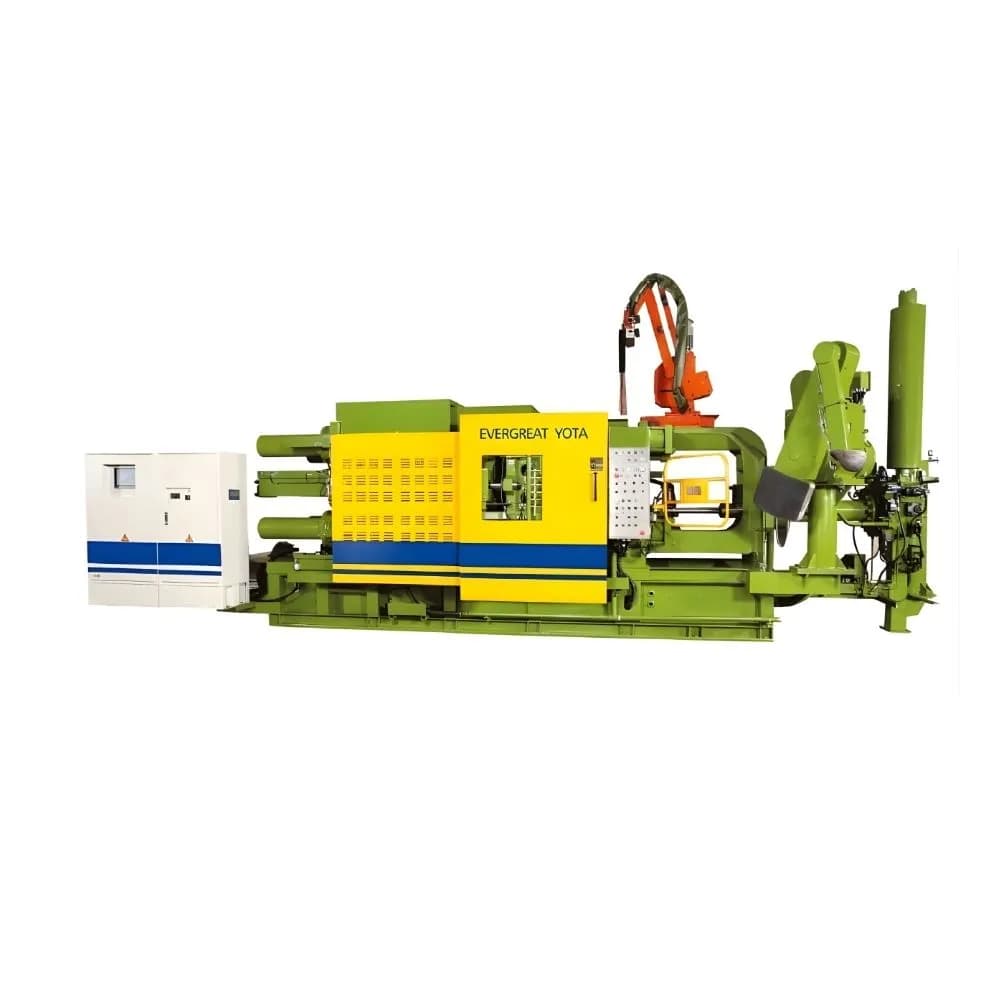

EVERGREAT Die Casting Machine (500-800) Ton
Cold Chamber Machines3 models
Evergreat die casting machines are designed with superior rigidity to minimize deformation, ensuring consistent and high-quality die castings. Our machines are optimized through rigorous analysis and design, offering exceptional performance for cold chamber die casting applications.
Model Comparison
| Specification | DC-500 | DC-650 | DC-800 |
|---|---|---|---|
| Clamping Force(Ton) | 500 | 650 | 800 |
| Die Platen Size(mm) | 1245x1245 | 1280x1280 | 1432x1432 |
| Tie-bar spacing(mm) | 750x750 | 850x850 | 950x950 |
| Die height [min. - max.](mm) | 300-850 | 350-900 | 400-950 |
| Injection force(Ton) | 50 | 54.5 | 63 |
| lnjection pressure(kg/cm(2)) | 110-140 | 110-140 | 110-140 |
| lnjection weight(Kgs) | 4.64-6.07-7.68 | 4.64-6.07-7.68 | 6.8-8.7-10.7 |
| Casting area(cm) | 919-459,1201-599,1522-775 | 919-459,1201-599,1522-775 | 320-60,1660-830,2088-1040 |
| Main Motor Power(Kw) | 37.5 | 37.5 | 45 |
| Machine size (LXWXH)(mm) | 8800x2300x2780 | 8800x2300x2780 | 8580x2100x2660 mm |
| Machine Weight(Ton) | 25 | 25 | 39 |
Features & Accessories
Features (Standard):
- Hydraulic System
- Automatic Lubricator
- Piston-type Accumulator
- Safety Door
Features (Optional):
- Two Injection Center
- Automatic Tie bar pull out device
- Multi stage Injection control
- Energy saving hydraulic device
- E.I.V. Electric Injection valve
