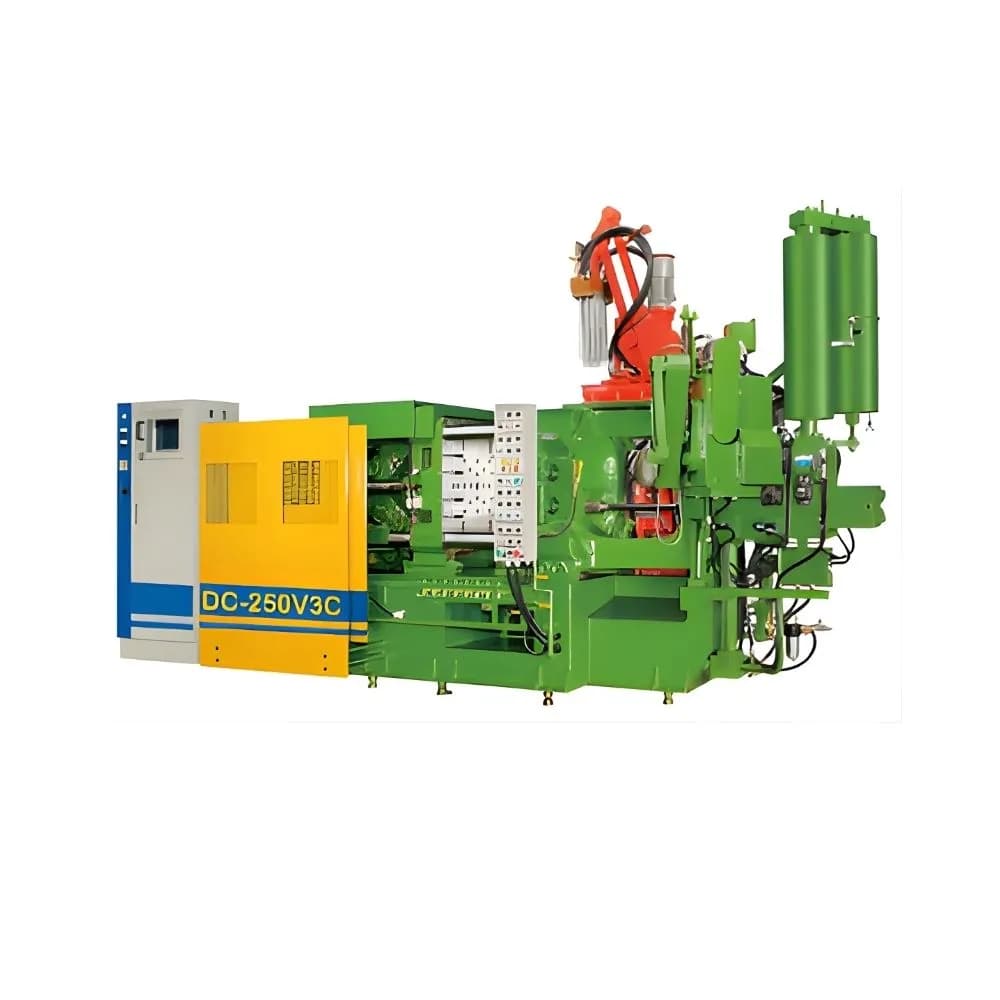

A heavy-duty EVERGREAT Die Casting Machine featuring up to 800 tons of clamping force and superior structural rigidity. This premium Cold Chamber Die Casting Machine prevents part deformation, delivering rapid cycle times and massive ROI for demanding aluminum die casters.
EVERGREAT

EVERGREAT Die Casting Machine (150-420) Ton

Cold Chamber Machines3 models

Superior Rigidity & Minimum Deformation is the motto of Evergreat die casting machines, the scructure is optimized by analyzing and designing with effort.

Get a QuoteSpare Parts

Model Comparison

SpecificationDC-150DC-250DC-420
Clamping Force(Ton)150 250 420
Die Platen Size(mm)730x730890x8901000x1000
Tie-bar spacing(mm)465x465 585x585650x650
Die height [min. - max.](mm)250-500250-600300-700
Injection force(Ton)18.227 35
lnjection pressure(kg/cm(2))110-130110-140110-140
lnjection weight(Kgs)0.92-1.16-1.641.4-2.02-2.752.35-3.2-4.18
Casting area(cm)239-118,296-146,426-210 363-181,524-262,714-357584-292,794-397,1036-518
Main Motor Power(Kw)15 22.522.5
Machine size (LXWXH)(mm)4600x1740x 23005030x1800x20406500x2200x2500
Machine Weight(Ton)6 10.516

Features & Accessories

Features (Standard):

  • Hydraulic System
  • Automatic Lubricator
  • Piston-type Accumulator
  • Safety Door


Features (Optional):

  • Two Injection Center
  • Automatic Tie bar pull out device
  • Multi stage Injection control
  • Energy saving hydraulic device
  • E.I.V. Electric Injection valve
