PRECIGRIND

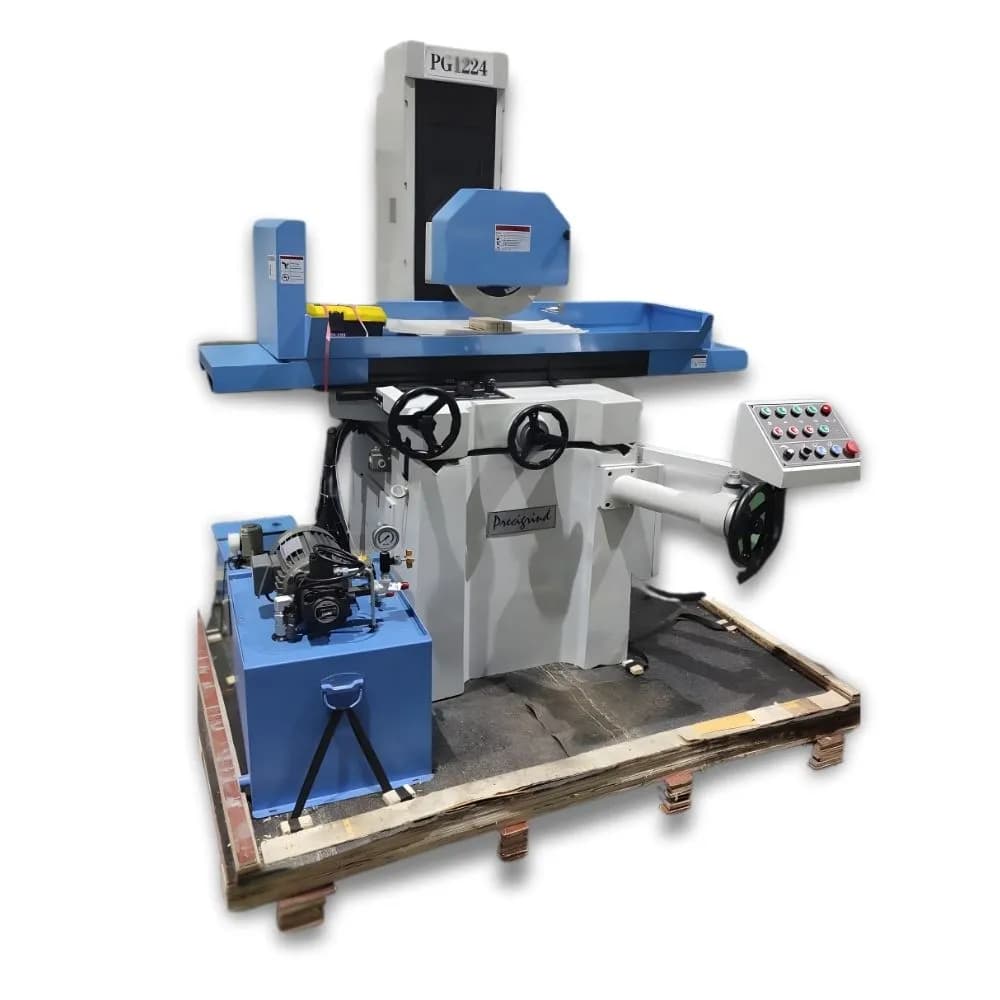

Hydraulic Surface Grinder Machine
Surface Grinder2 models
"Fine Tolerance and High Accuracy" define our Precigrind Surface Grinder Machine. This premium surface grinder features Taiwan-made hydraulic manifold, pump, and valve components, along with Class P4 spindle bearings. Our surface grinder delivers exceptional performance with minimal maintenance costs and reduced breakdowns, making it a reliable choice for precision grinding operations.
Model Comparison
| Specification | PG1020/H/AH | PG1224H/H/AH |
|---|---|---|
| Max. Work Piece to be Ground (LxWxH)(mm) | 540x250x300 | 600x300x355 |
| Max. Grinding Length(mm) | 560 | 630 |
| Max. Grinding Width(mm) | 250 | 320 |
| Distance from Table Surface to Spindle Center(mm) | 450 | 530 |
| X | — | — |
| Slide way | Manual - Twin Rail with Ball | Manual - Twin Rail with Ball |
| Y | Hydraulic - V & Flat with Turcite | Hydraulic - V & Flat with Turcite |
| Table Load(Kg) | 200 | 200 |
| Table Size (LxW)(mm) | 540x250 | 600x300 |
| Number of T-Slot(mmxn) | 14x1 | 14x1 |
| Speed of Working Table(m/min) | 2-23 | 3-20 |
| Cross Feed on Handwheel(mm) | 0.02/Graduation 2.5/Revolution | 0.02/Graduation 2.5/Revolution |
| Vertical Feed on Handwheel(mm) | 0.01/Graduation 1.25/Revolution | 0.01-2.0/Revolution |
| Wheel Size (Dia x Width x Bore)(mm) | 200x20x31.75 | 250x25.4×76.2 |
| Spindle Speeds(RPM) | 2850 | 1450 |
| Spindle Motor(Kw) | 1.5 | 2.2 |
| Hydraulic Station Motor (Only H Models)(Kw) | 1.5 | 2.2 |
| Rapid Up and Down Motor (Only H Models)(W) | - | 120 |
| Working Pressure (Only H Models)(Mpa) | 3 | 4 |
| Max. Capacity (Only H Models)(L/min) | 18 | 20 |
| Capacity of Oil tank (Only H Models)L(L) | 80 | 100 |
| Coolant Pump(Kw) | 0.4 | 0.4 |
| Machine Size (LxWxH)(mm) | 1600x1220x1720 | 1900x1480x1850 |
| Packing Size (LxWxH)(mm) | 1630x1250x1940 | 1960x1640x2020 |
| Net / Gross(Kg) | 900/1000 | 1400/1300 |
Features & Accessories
Features:
- Distance From Table Surface to Spindle Center(mm): 450 ~ 530
- Designed and robustly constructed for a long and accurate working life with minimal maintenance
- Base, Saddle, Table and Column offer High Rigidity combined with High Sensitivity for Ultra Precision
- Working surface of table from 250 x 500mm to 700 x 2050mm
- Max table travel from 270 x 550mm to 760 x 2120mm
- Max surface ground from 250 x 500mm to 700 x 2020mm
Standard Accessories:
- Permanent Magnetic Chuck.
- Grinding Wheel
- Wheel Dresser
- Diamond Pen
- Balancing Stand with Shaft
- Puller for adaptor
- Coolant System
- Work Lamp
- Tool Box with tools
